Bonus Tutorial 6: Radiative-Convective Equilibrium#
Week 1, Day 5, Introduction to Climate Modeling
Content creators: Jenna Pearson and Brian E. J. Rose
Content reviewers: Mujeeb Abdulfatai, Nkongho Ayuketang Arreyndip, Jeffrey N. A. Aryee, Younkap Nina Duplex, Will Gregory, Paul Heubel, Zahra Khodakaramimaghsoud, Peter Ohue, Abel Shibu, Derick Temfack, Yunlong Xu, Peizhen Yang, Ohad Zivan, Chi Zhang
Content editors: Abigail Bodner, Paul Heubel, Brodie Pearson, Ohad Zivan, Chi Zhang
Production editors: Wesley Banfield, Paul Heubel, Jenna Pearson, Konstantine Tsafatinos, Chi Zhang, Ohad Zivan
Our 2024 Sponsors: CMIP, NFDI4Earth
Tutorial Objectives#
Estimated timing of tutorial: 20 minutes
Note that this and the two previous tutorials contain solely Bonus content that serves experienced participants and for later investigation of 0- and 1-dimensional models after the course. Please check out these tutorials after finishing Tutorial 7-8 successfully.
Building on the understanding of a one-dimensional radiative balance model from the previous tutorial, in this tutorial you will learn about radiative-convective-equilibrium. Much of the code shown here was taken from The Climate Laboratory by Brian E. J. Rose. You are encouraged to visit this website for more tutorials and background on these models.
By the end of this tutorial you will be able to:
Implement a radiative-convective equilibrium model using the python package
climlab.Understand how this model builds off the one-dimensional radiative balance model used in the previous tutorials.
Setup#
# installations ( uncomment and run this cell ONLY when using google colab or kaggle )
# !pip install -q climlab cftime metpy
# !pip install -q git+https://github.com/climlab/climlab-rrtmg
# !pip install -q git+https://github.com/climlab/climlab-cam3-radiation
# !pip install -q git+https://github.com/climlab/climlab-emanuel-convection
# imports
# google colab users, if you get an xarray error, please run this cell again
import xarray as xr # used to manipulate data and open datasets
import numpy as np # used for algebra/arrays
import climlab # one of the models we are using
import matplotlib.pyplot as plt # used for plotting
import metpy # used to make Skew T Plots of temperature and pressure
from metpy.plots import SkewT # plotting function used widely in climate science
import pooch
import os
import tempfile
from IPython.display import HTML
from matplotlib import animation
Downloading data from 'http://www.atmos.albany.edu/facstaff/brose/resources/climlab_data/absorptivity/abs_ems_factors_fastvx.c030508.nc' to file '/home/runner/.cache/pooch/61707eb16bd77eb262c3c7db3706b35d-abs_ems_factors_fastvx.c030508.nc'.
/home/runner/micromamba/envs/climatematch/lib/python3.11/site-packages/climlab/radiation/cam3.py:45: UserWarning: Cannot import and initialize compiled Fortran extension, CAM3 module will not be functional.
warnings.warn('Cannot import and initialize compiled Fortran extension, CAM3 module will not be functional.')
Install and import feedback gadget#
Show code cell source
# @title Install and import feedback gadget
!pip3 install vibecheck datatops --quiet
from vibecheck import DatatopsContentReviewContainer
def content_review(notebook_section: str):
return DatatopsContentReviewContainer(
"", # No text prompt
notebook_section,
{
"url": "https://pmyvdlilci.execute-api.us-east-1.amazonaws.com/klab",
"name": "comptools_4clim",
"user_key": "l5jpxuee",
},
).render()
feedback_prefix = "W1D5_T6"
Figure settings#
Show code cell source
# @title Figure settings
import ipywidgets as widgets # interactive display
%config InlineBackend.figure_format = 'retina'
plt.style.use(
"https://raw.githubusercontent.com/abodner/climate-course-content/main/cma.mplstyle"
)
Helper functions#
Show code cell source
# @title Helper functions
def pooch_load(filelocation=None, filename=None, processor=None):
shared_location = "/home/jovyan/shared/Data/tutorials/W1D5_IntroductiontoClimateModeling" # this is different for each day
user_temp_cache = tempfile.gettempdir()
if os.path.exists(os.path.join(shared_location, filename)):
file = os.path.join(shared_location, filename)
else:
file = pooch.retrieve(
filelocation,
known_hash=None,
fname=os.path.join(user_temp_cache, filename),
processor=processor,
)
return file
Plotting Functions#
Show code cell source
# @title Plotting Functions
# make the videos at the end of the tutorial
plt.rcParams["animation.html"] = "jshtml"
# these three functions are used to make videos at the end of the tutorial
def initial_figure(model):
with plt.ioff(): # will hide the inital figure which will plot separate from the video otherwise
fig = plt.figure(figsize=(6, 6))
lines = []
skew = SkewT(fig, rotation=30)
# plot the observations
skew.plot(
Tglobal.level,
Tglobal,
color="black",
linestyle="-",
linewidth=2,
label="Observations",
)
lines.append(
skew.plot(
model.lev,
model.Tatm - climlab.constants.tempCtoK,
linestyle="-",
linewidth=2,
color="C0",
label="RC model (all gases)",
)[0]
)
skew.ax.legend()
skew.ax.set_ylim(1050, 10)
skew.ax.set_xlim(-60, 75)
# Add the relevant special lines
skew.plot_dry_adiabats(linewidth=1.5, label="dry adiabats")
# skew.plot_moist_adiabats(linewidth=1.5, label = 'moist adiabats')
skew.ax.set_xlabel("Temperature ($^\circ$C)", fontsize=14)
skew.ax.set_ylabel("Pressure (hPa)", fontsize=14)
lines.append(
skew.plot(
1000,
model.Ts - climlab.constants.tempCtoK,
"o",
markersize=8,
color="C0",
)[0]
)
return fig, lines
def animate(day, model, lines):
lines[0].set_xdata(np.array(model.Tatm) - climlab.constants.tempCtoK)
lines[1].set_xdata(np.array(model.Ts) - climlab.constants.tempCtoK)
# lines[2].set_xdata(np.array(model.q)*1E3)
# lines[-1].set_text('Day {}'.format(int(model.time['days_elapsed'])))
# This is kind of a hack, but without it the initial frame doesn't appear
if day != 0:
model.step_forward()
return lines
# to setup the skewT and plot observations
def make_basic_skewT():
fig = plt.figure(figsize=(9, 9))
skew = SkewT(fig, rotation=30)
skew.plot(
Tglobal.level,
Tglobal,
color="black",
linestyle="-",
linewidth=2,
label="Observations",
)
skew.ax.set_ylim(1050, 10)
skew.ax.set_xlim(-90, 45)
# Add the relevant special lines
# skew.plot_dry_adiabats(linewidth=1.5, label = 'dry adiabats')
# skew.plot_moist_adiabats(linewidth=1.5, label = 'moist adiabats')
# skew.plot_mixing_lines()
skew.ax.legend()
skew.ax.set_xlabel("Temperature (degC)", fontsize=14)
skew.ax.set_ylabel("Pressure (hPa)", fontsize=14)
return skew
# to setup the skewT and plot observations
def make_skewT():
fig = plt.figure(figsize=(9, 9))
skew = SkewT(fig, rotation=30)
skew.plot(
Tglobal.level,
Tglobal,
color="black",
linestyle="-",
linewidth=2,
label="Observations",
)
skew.ax.set_ylim(1050, 10)
skew.ax.set_xlim(-90, 45)
# Add the relevant special lines
skew.plot_dry_adiabats(linewidth=1.5, label="dry adiabats")
# skew.plot_moist_adiabats(linewidth=1.5, label = 'moist adiabats')
# skew.plot_mixing_lines()
skew.ax.legend()
skew.ax.set_xlabel("Temperature (degC)", fontsize=14)
skew.ax.set_ylabel("Pressure (hPa)", fontsize=14)
return skew
# to add a model derived profile to the skewT figure
def add_profile(skew, model, linestyle="-", color=None):
line = skew.plot(
model.lev,
model.Tatm - climlab.constants.tempCtoK,
label=model.name,
linewidth=2,
)[0]
skew.plot(
1000,
model.Ts - climlab.constants.tempCtoK,
"o",
markersize=8,
color=line.get_color(),
)
skew.ax.legend()
Video 1: Radiative-Convective Equilibrium#
Submit your feedback#
Show code cell source
# @title Submit your feedback
content_review(f"{feedback_prefix}_Radiative_Convective_Equilibrium_Video")
If you want to download the slides: https://osf.io/download/msarf/
Submit your feedback#
Show code cell source
# @title Submit your feedback
content_review(f"{feedback_prefix}_Radiative_Convective_Equilibrium_Slides")
Section 1: Reproducing Data from the Last Tutorial’s One-dimensional Radiative Equilibrium Model Using Climlab#
Please refer to the previous Bonus Tutorial 6 for a refresher if needed.
filename_sq = "cpl_1850_f19-Q-gw-only.cam.h0.nc"
url_sq = "https://osf.io/c6q4j/download/"
ds = xr.open_dataset(
pooch_load(filelocation=url_sq, filename=filename_sq)
) # ds = dataset
filename_ncep_air = "air.mon.1981-2010.ltm.nc"
url_ncep_air = "https://osf.io/w6cd5/download/"
ncep_air = xr.open_dataset(
pooch_load(filelocation=url_ncep_air, filename=filename_ncep_air)
) # ds = dataset
# take global, annual average of specific humidity
weight_factor = ds.gw / ds.gw.mean(dim="lat")
Qglobal = (ds.Q * weight_factor).mean(dim=("lat", "lon", "time"))
# use 'lev=Qglobal.lev' to create an identical vertical grid to water vapor data
mystate = climlab.column_state(lev=Qglobal.lev, water_depth=2.5)
radmodel = climlab.radiation.RRTMG(
name="Radiation (all gases)", # give our model a name
state=mystate, # give our model an initial condition
specific_humidity=Qglobal.values, # tell the model how much water vapor there is
albedo=0.25, # set the SURFACE shortwave albedo
timestep=climlab.constants.seconds_per_day, # set the timestep to one day (measured in seconds)
)
# need to take the average over space and time
# the grid cells are not the same size moving towards the poles, so we weight by the cosine of latitude to compensate for this
coslat = np.cos(np.deg2rad(ncep_air.lat))
weight = coslat / coslat.mean(dim="lat")
# global mean temperature from NCEP
Tglobal = (ncep_air.air * weight).mean(dim=("lat", "lon", "time"))
# take a single step forward until the diagnostics are updated and there is some energy imbalance
radmodel.step_forward()
# run the model to equilibrium (the difference between ASR and OLR is a very small number)
while np.abs(radmodel.ASR - radmodel.OLR) > 0.001:
radmodel.step_forward()

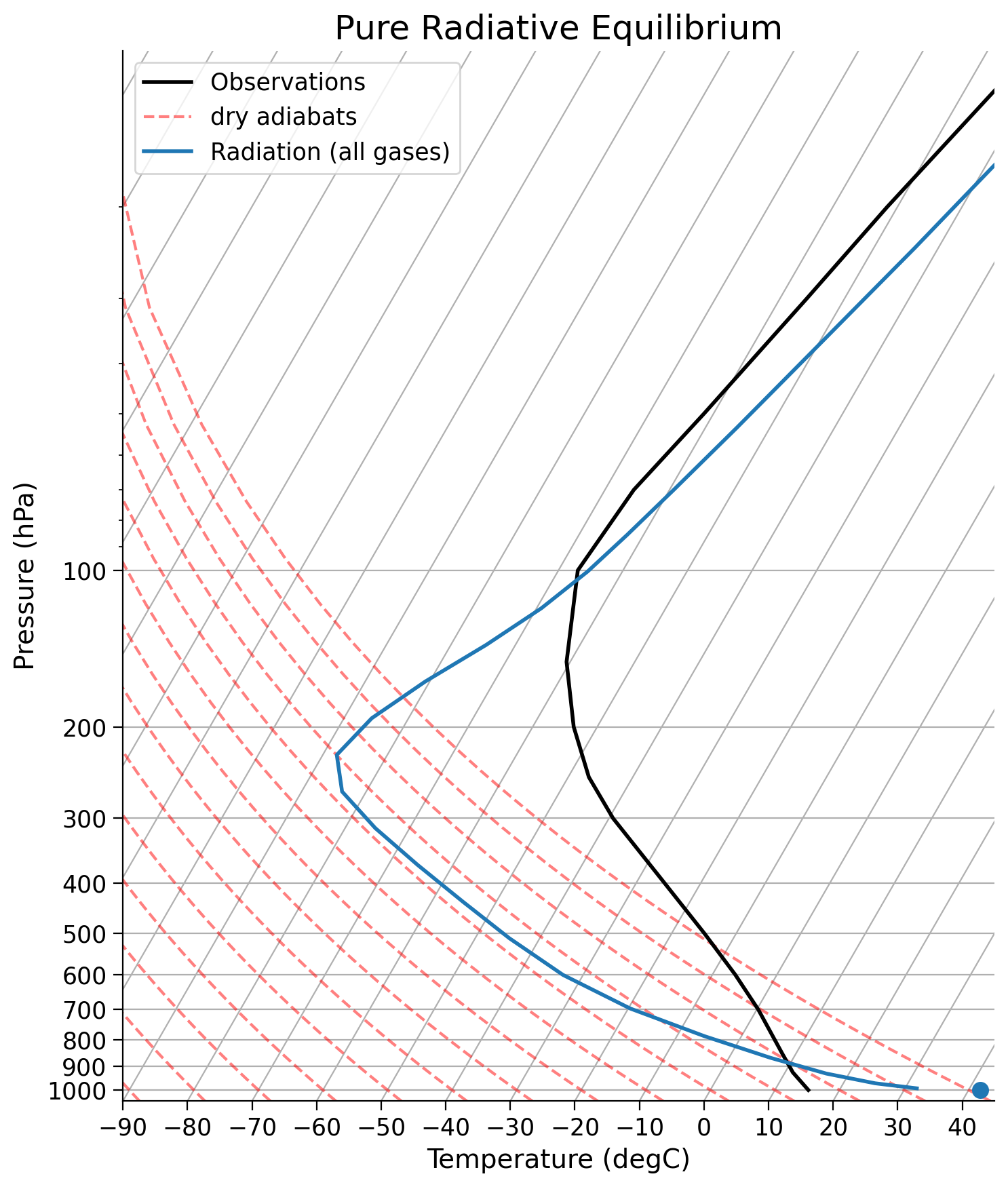

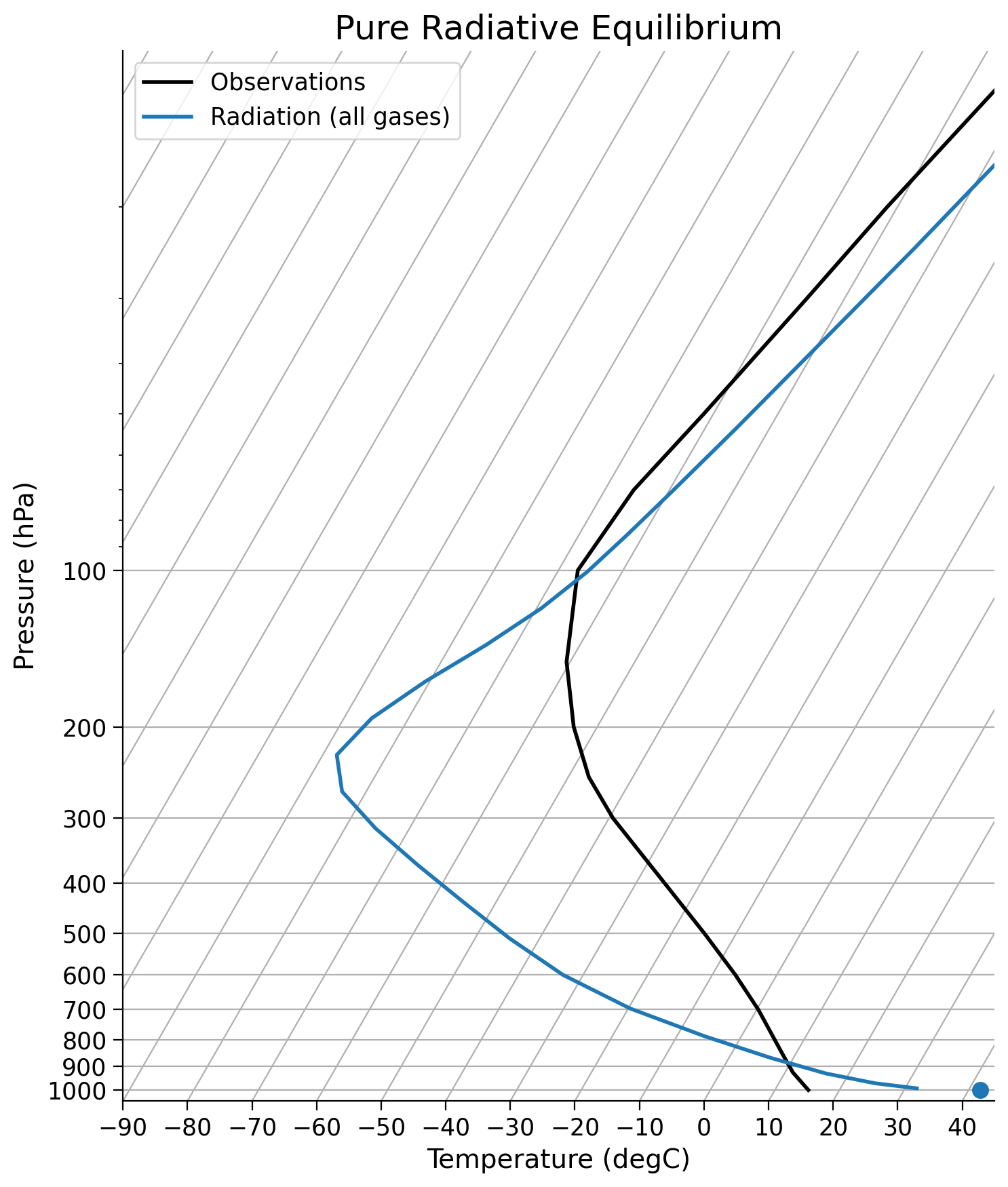

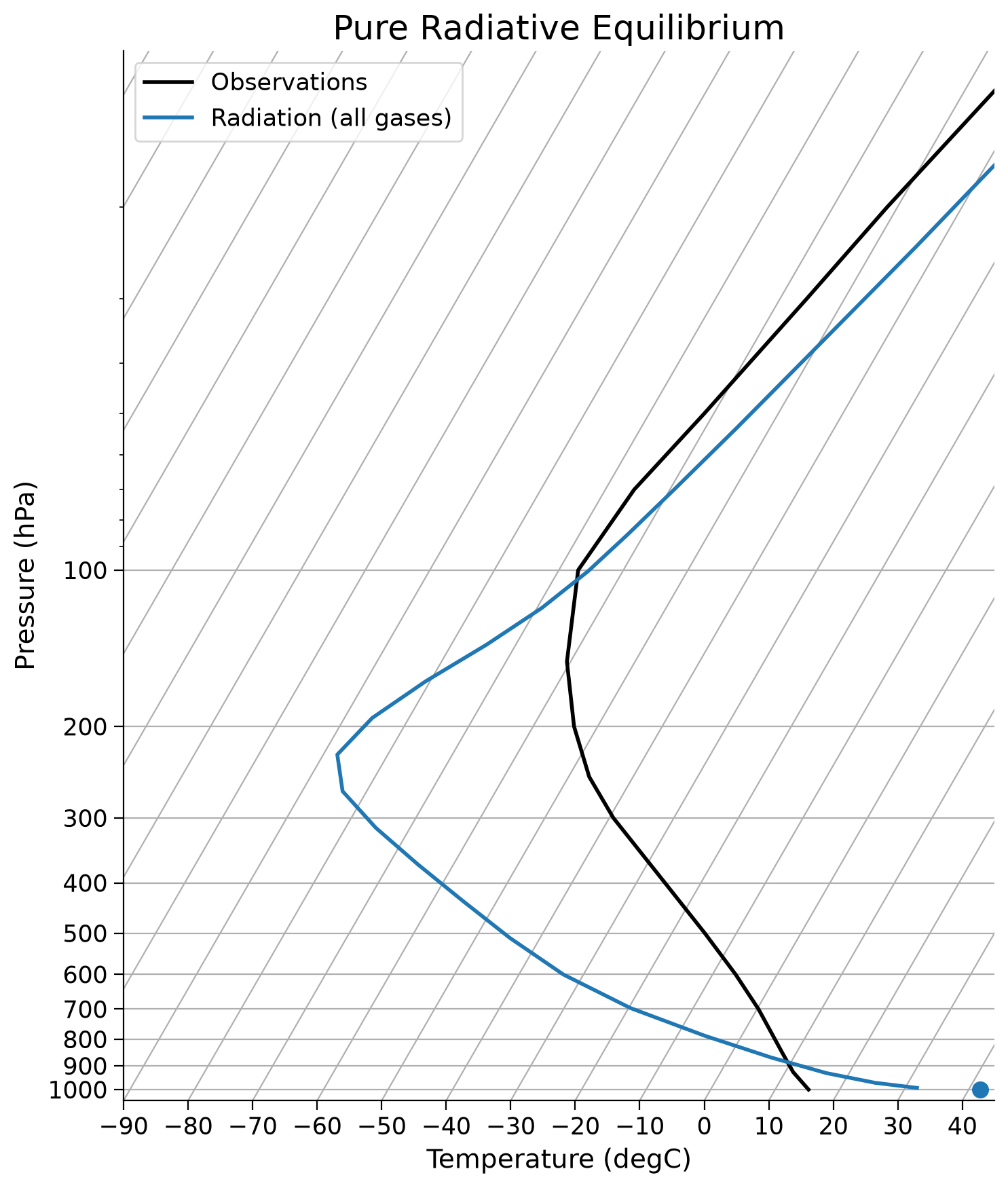

skew = make_basic_skewT()
add_profile(skew, radmodel)
skew.ax.set_title("Pure Radiative Equilibrium")
